VERTICAL BALER
Baler B6030
Complete terms available on approved credit through Bramidan US Inc. Rental and leasing examples are for example only and based on a standard machine at MSRP with freight to dock* (max $1,200 allowance) and installation (max $1,000 allowance).
Rental or leasing rates do not include taxes, insurance, etc. Not all customers will qualify and qualification criteria are in Bramidan US Inc.’s sole discretion and subject to change. Not available in all states.
Contact Bramidan US Inc. for full details and terms and conditions.
VERTICAL BALER
VERTICAL BALER
Heavy bale weight
Compact cardboard, paper and soft plastic into 1,000 pound mill-size bales with the large 60 inch chamber.

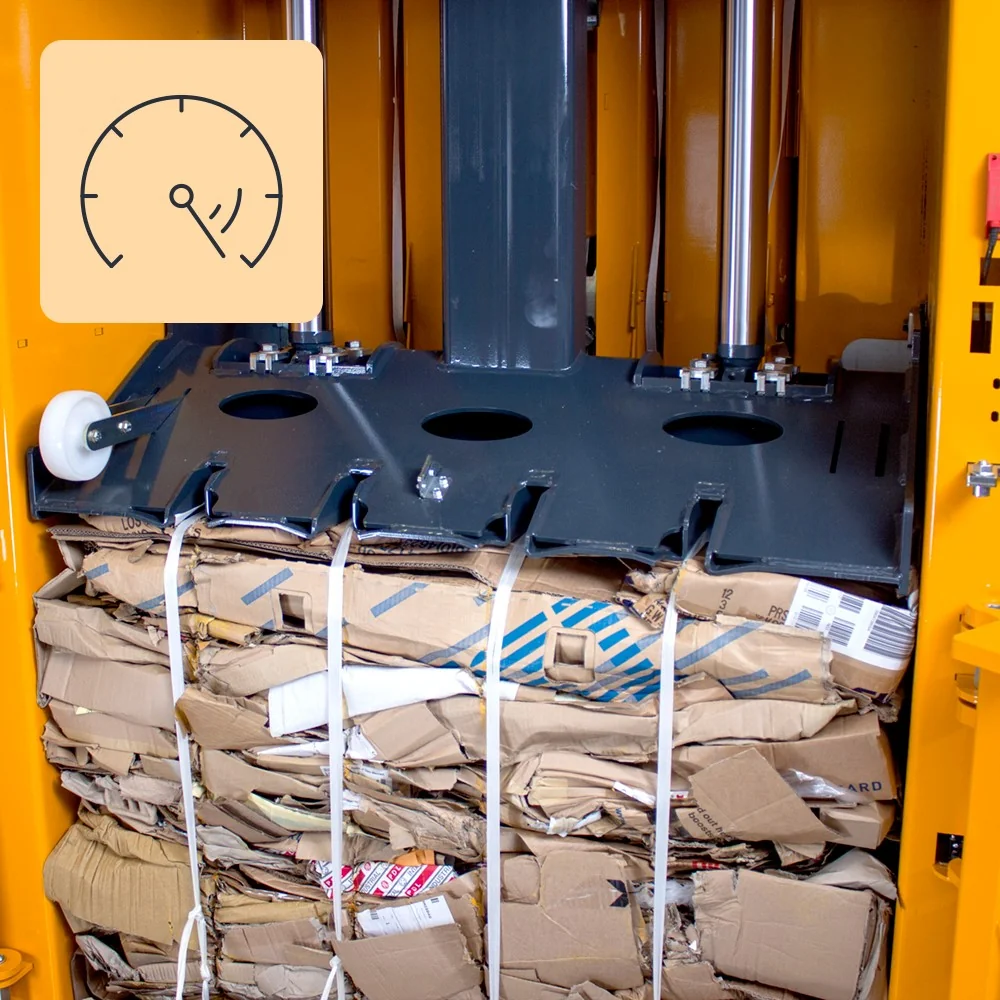

High compaction ratio
An even amount of pressure applied to the material results in a compact and dense cardboard or plastic bale.

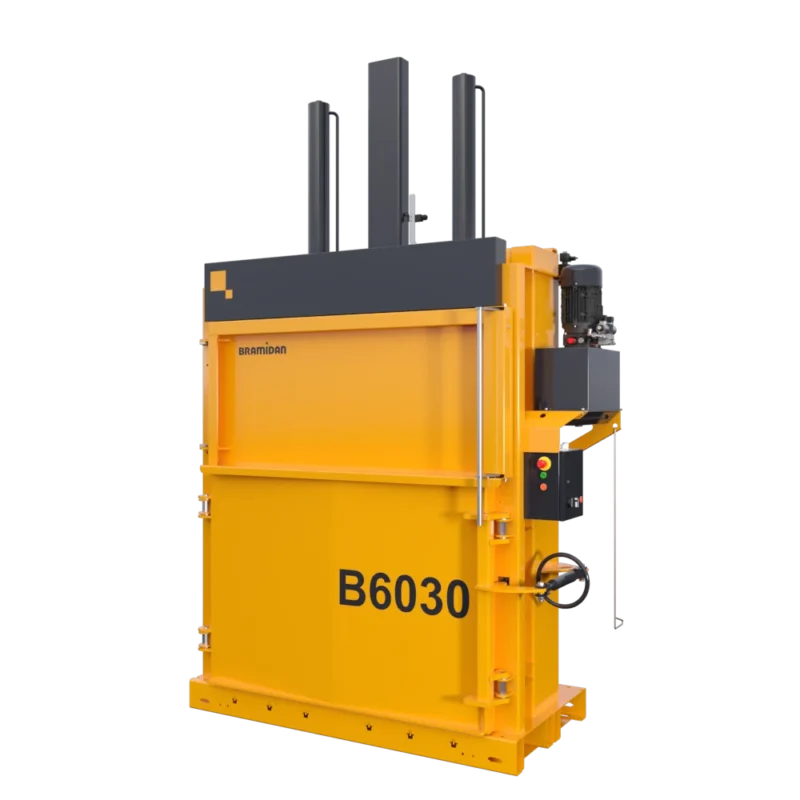

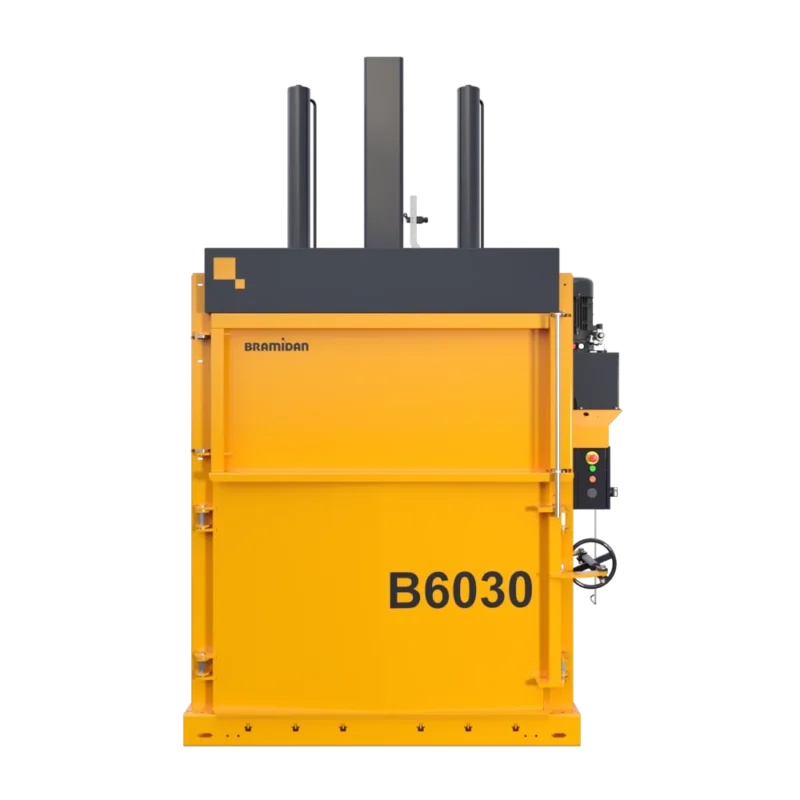

B6030 – Exceptional mill-size baler
- Extra wide chamber (>60 inches)
- Compacts large bulky materials
- Tie off finished bales with metal wire or polyblend strapping
- Lowest noise level in the market (<62 dB)
- Full bale light notification
- Automatic ejection of finished baler

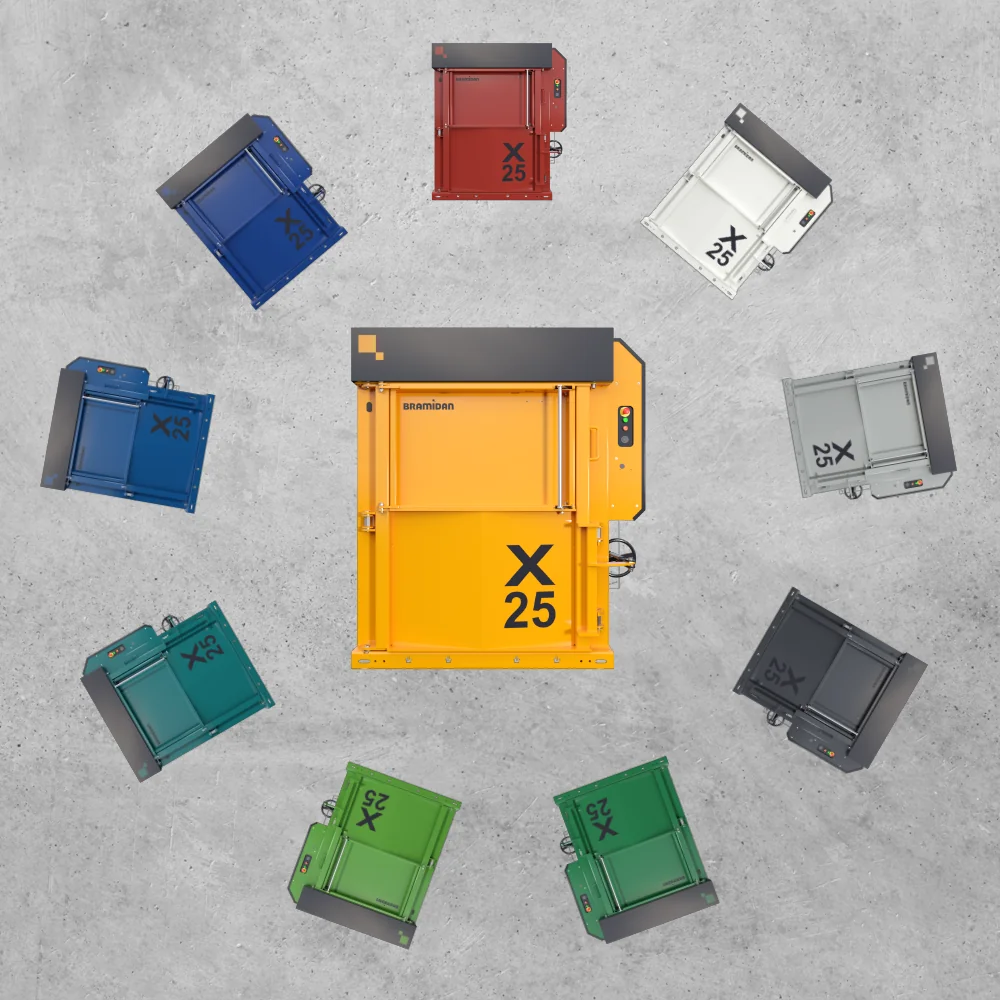

- Powder Coating provides durable finish in many colors
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
| Bale weight cardboard (lbs) | 800-1,200 |
| Bale weight plastic foil (lbs) | 850-1,300 |
| Press force (lbs) | 66,200 |
| Power supply | 208/230/480V 3-phase 60Hz |
| Motor (HP) | 5.5 |
| Noise Level (dB) | 62-64 |
| Cycle time avg. (sec) | 42 |
| Dimensions WxDxH (inch) | 83 x 50 x 132 / 93 |
| Weight (lbs) | 4,000 |
| Feed opening WxH (inch) | 60 x 24 |
| Load height (inch) | 50 |
| Chamber height (inch) | 71 |
| Stroke (inch) | 41 |
| Number of ties | 6 |
| Type of tying | Twine / Steel wire |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Large |
Monitor & Analyze Your Equipment
Combine our BRA-IN services to fit your needs
Yes, we do. Our 60” baler, the B6030, makes bales that meet standard mill-size dimensions and weight specifications. Finished bales weigh 800 – 1,300 lbs., depending on the material.
The low-profile design allows the baler to fit an 8 foot dock door standing up. Once the cylinders are raised, it can be installed and operated under an 11 foot ceiling.
All of our balers are usually very quiet and can be placed in a variety of work environments without causing a disturbance.
Our B-series vertical balers have a very low noise level that never exceeds 57 – 68 decibels. The noise is comparable to that of a vacuum cleaner or air conditioning system.
Our X-series vertical balers have an even lower noise level that does not exceed 59 decibels. The noise is equivalent to conversational speech.
We recommend placing the machine indoors. If it is outdoors, it must be placed under a covered roof in weather that is not excessively cold or rainy.
Be aware that placing the baler in a consistently cold environment will affect its performance. If it is located in an area that is very cold, we recommend a special hydrualic oil to prevent potential issues.
Contact a member of our sales team if you are interested in placing a machine outside or in a cold environment.
The type of waste handling equipment you need depends on a number of different factors: The amount of waste you generate on a daily basis, as well as the waste type. Another factor to consider is the amount of space you have in your facility.
The right waste solution should be tailored to your company’s structure and internal work processes to ensure a perfect fit.
A member of our sales team can assist you in making the right decision.
Yes, most of our balers can easily handle 60” widescreen TV boxes.
Our widest machines, the B6030 and X6030 balers, can handle up to 65” widescreen TV boxes. There is no need to break down the boxes first. View the filling opening dimensions on our balers under Product Specifications.
