VERTICAL BALER

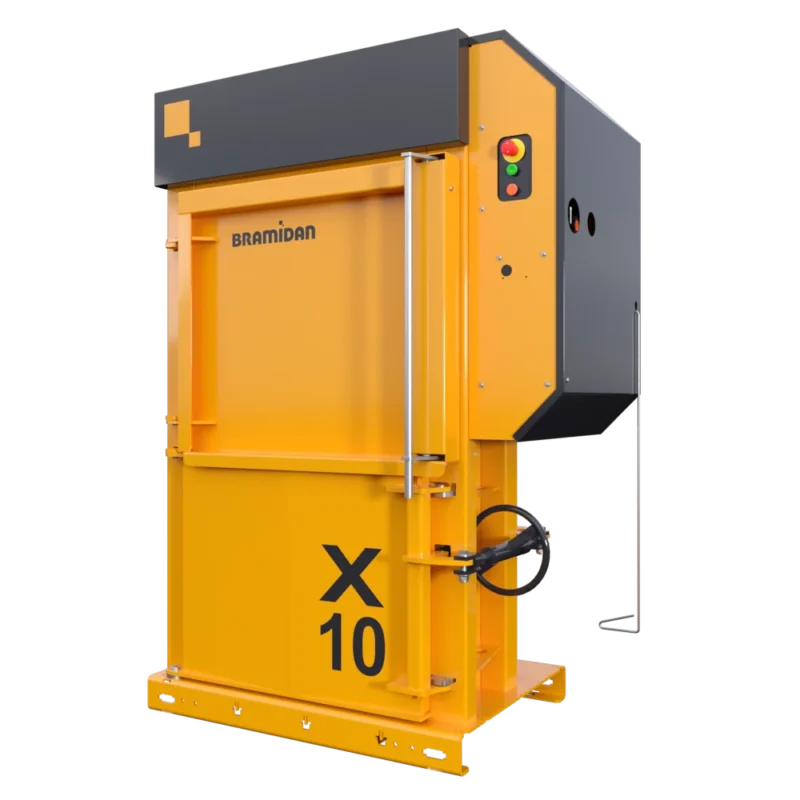

Baler X10 HD
VERTICAL BALER
VERTICAL BALER
Powerful press force
The X10 HD is a small and compact machine with a powerful press force that’s unique for its size..
Safe ejection process
The ergonomic two-hand ejection sequence safely ejects the finished bale and eliminates risk for injury.
X10 HD – Hardworking baler with high capacity:
- Efficient and compact
- Low overall height with internal cross cylinders
- Fast cycle time
- Press force of 22,000 lbs.
- Small footprint (52 x 41 x 75 in.)
- Durable compaction
- Available in both single-phase and three-phase power packs
- Safely open lower door with turnbuckle

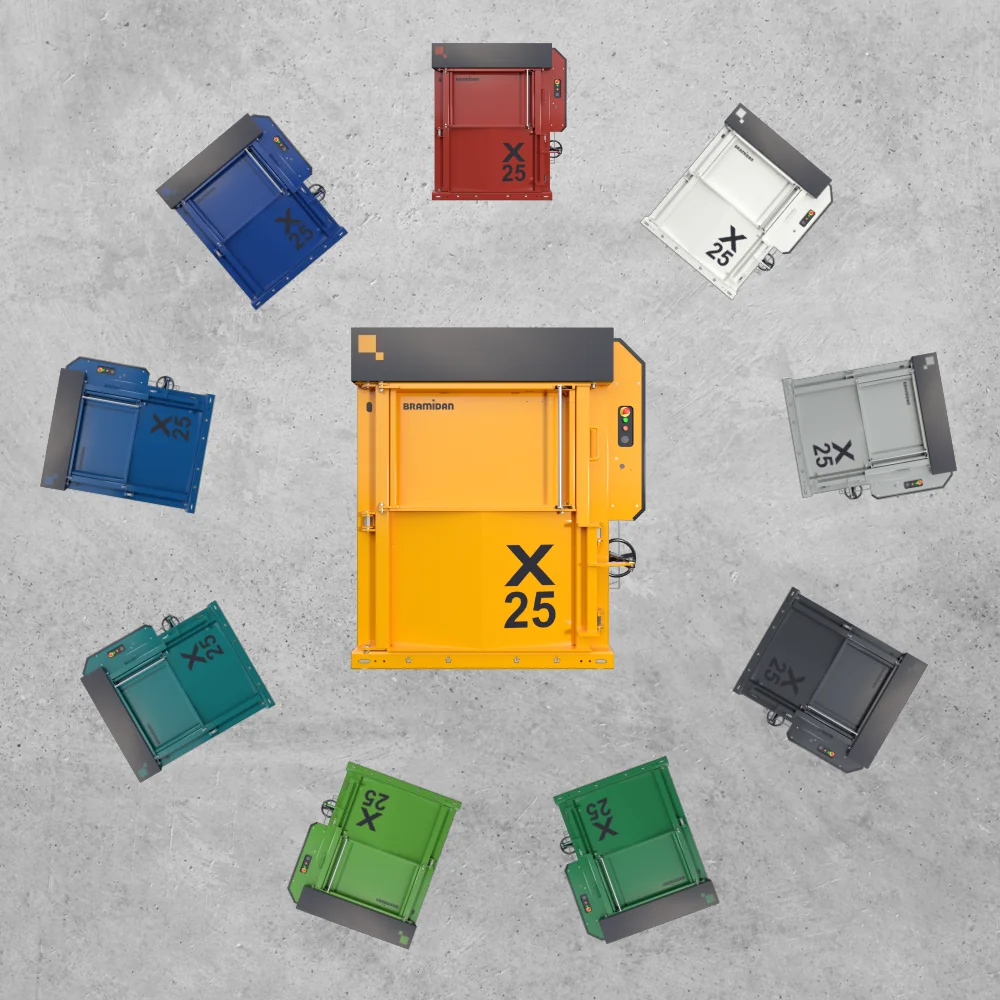

- Powder Coating provides durable finish in many colors
Time-saving and easy waste handling
- Load your recyclables into vertical baler.
- A full-bale light tells you when the baler is full.
- Tie off and eject the compacted bale.
- Remove the bale with a pallet jack for storage untill collection.
| Bale weight cardboard (lbs) | 150-200 |
| Bale weight plastic foil (lbs) | 175-245 |
| Press force (lbs) | 22,000 |
| Power supply | 110V 1-Phase 60Hz 20A |
| Motor (HP) | 2.0 |
| Noise Level (dB) | 62-64 |
| Cycle time avg. (sec) | 45 |
| Dimensions WxDxH (inch) | 52 x 41 x 75 |
| Weight (lbs) | 1,470 |
| Feed opening WxH (inch) | 31 x 24 |
| Load height (inch) | 31 |
| Chamber height (inch) | 51 |
| Stroke (inch) | 33 |
| Number of ties | 3 |
| Type of tying | Twine |
| Full bale light | Yes |
| Bale eject | Automatic |
| Waste volume | Small |
Monitor & Analyze Your Equipment
Combine our BRA-IN services to fit your needs
The baler model that is best for you depends on the type and volume of material and the amount you generate daily. It also depends on the amount of space you have at your facility.
Using this information, we can determine the proper waste solution for you and your company. Our sales team is happy to work with you to find the best fit for your company’s structure and internal work processes.
Our X-series balers are designed to compact a variety of different heavy-duty waste materials, such as plastic bottles (PET), expandable plastic, aluminium or tin cans, and big bags. They are also very efficient at compacting materials like cardboard, paper, and dry soft plastic (shrink wrap).
Contact a member of our sales team before compacting other types of materials in your baler.
All of our small footprint balers have a single-phase power pack for easy installation.

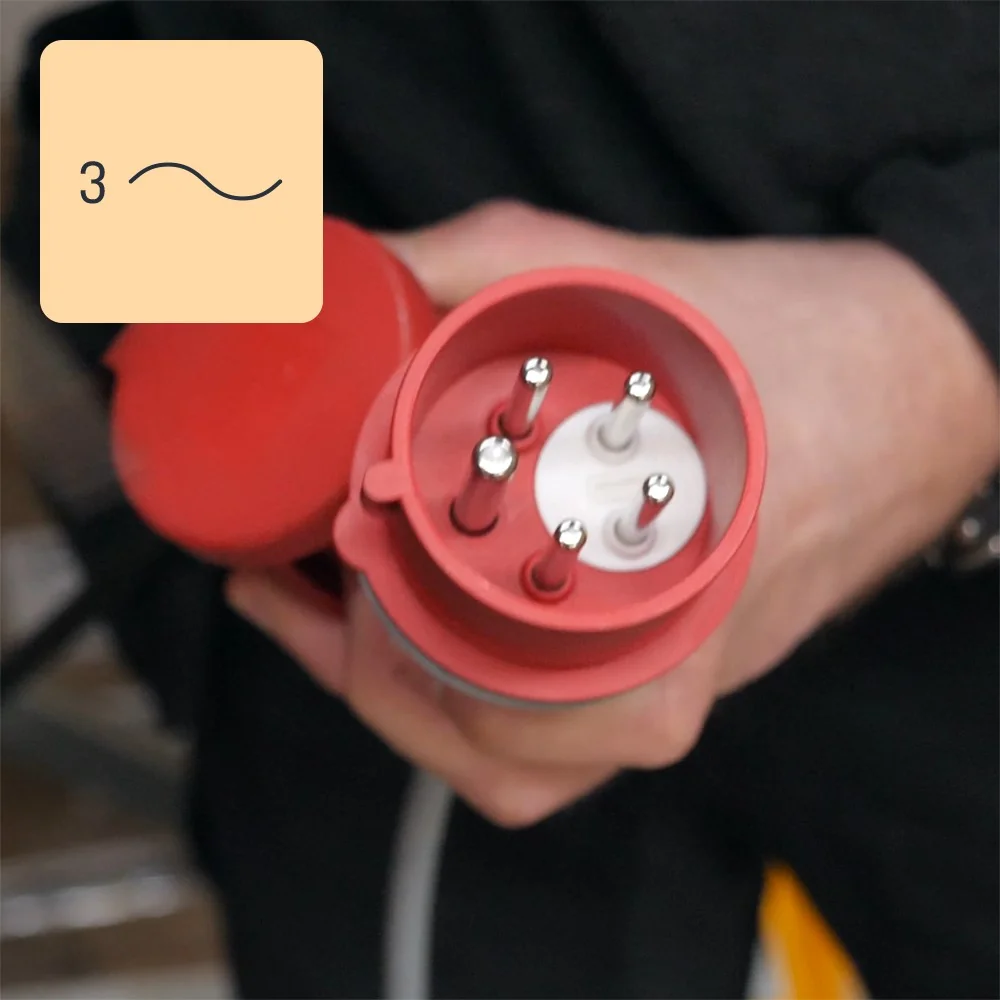

Our low-profile X10 HD baler is available with both a three-phase or single-phase power pack.
Yes, it is possible to bale PET bottles. However, before compacting, the bottles need to be perforated or the lids taken completely off. If not, the trapped air inside of the bottles will cause a looser, less compact bale. PET is one of the most abundant materials. It is found in soda bottles, water bottles, drinking cups, and food containers.
PET bottles can be baled in our X-series model balers. For a tighter and more stable bale, we recommend placing a layer of cardboard on both the top and bottom of the finished bale.
